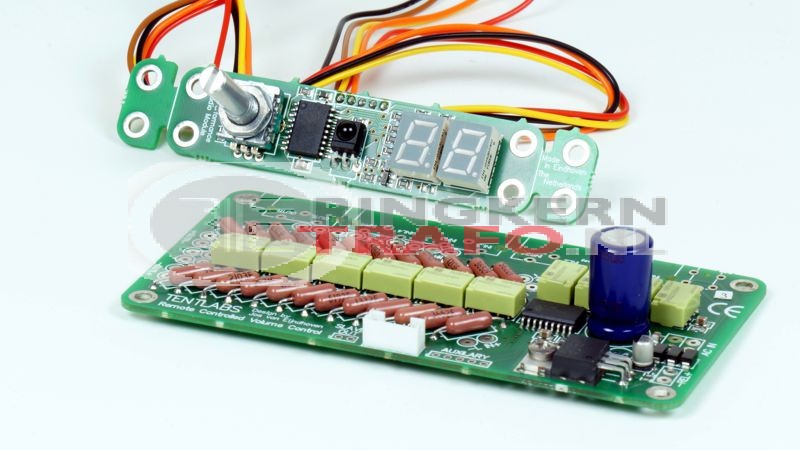

Volume wordt geregeld in 64 stappen van 1.0dB door de encoder te verdraaien. Door in te drukken kan de volgende ingang worden gekozen. Eveneens te bedienen met afstandsbediening (niet meegeleverd) van Philips, Marantz en Sony.

Specificaties

Electrisch
Input impedance: > 40 k-ohm (actual value depends on volume setting)
Output impedance: < 8 k-ohm (actual value depends on volume setting)
Power: AC or DC, 6 to 10V max, current max 150mA DC, 225mA AC (power connector supplied with module)
Volume setting: 64 steps of 1.0 dB
Channel imbalance: < 0.15 dB
Inputs: 4
Input / Output connectors: Cinch / RCA (can be supplied without connectors on special order)
Remote control: Not included, can be programmed by Philips / Marantz models and most Sony types
Power on/off output: Open collector


Mechanisch

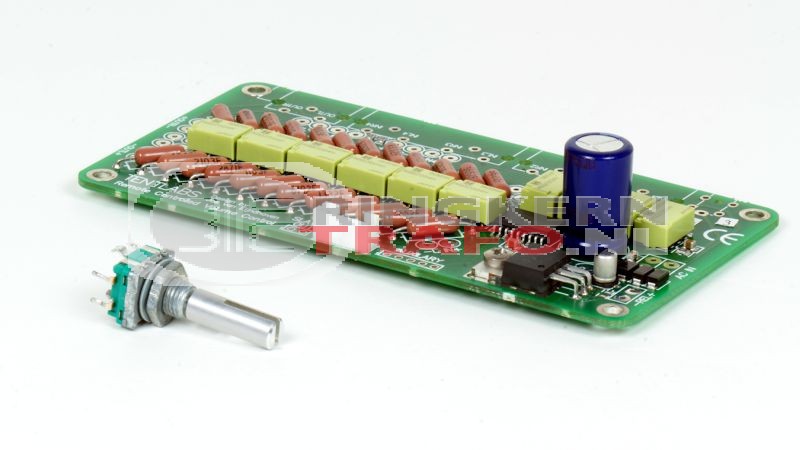

Main PCB size: 120*58*28 mm (W*L*H)(excludes connectors)
Hole pitch: 111*49 mm (symmetrical)

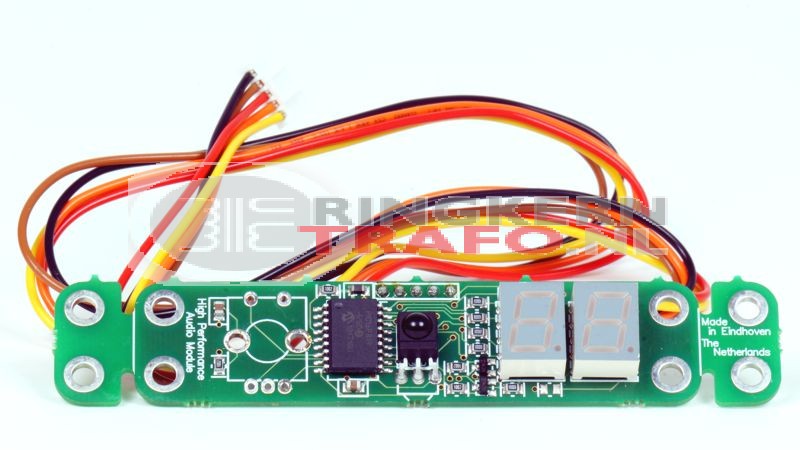

Display PCB size: 120*20*8 mm (W*L*H) (excludes control shaft)
Hole pitch: 111*11 mm (symmetrical)
Display PCB size can be reduced to : 80*20*8 mm (W*L*H) (excludes control shaft)
Hole pitch: 71*11 mm (symmetrical)
All hole diamters 3.2 mm
