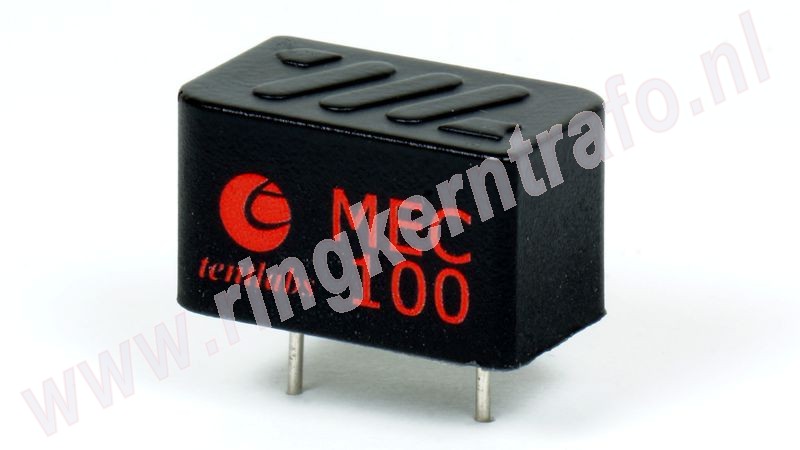

Specificaties MEC-100

• maximum current 100 mA
• maximum Vdc 800 V
• Internal Limit : no
• inductance 10 H
• maximum voltage drop @ Imax 9 V
• short circuit protection no
• protected for inverse connection yes
• maximum heat production 0,9 W
• minimum capacity C1 47 uF
• optimal capacity C1 = C2 100uF

Downloads

Nederlands-talig :
NL TENTLABS MEC50 / MEC100 DESCRIPTION AND MANUAL (PDF)

Engels-talig :
UK TENTLABS MEC50 / MEC100 DESCRIPTION AND MANUAL (PDF)
